For further information check the original post: . This is a summary:
If you don't know what Mach Messages are start checking this page:
For the moment remember that (): Mach messages are sent over a mach port, which is a single receiver, multiple sender communication channel built into the mach kernel. Multiple processes can send messages to a mach port, but at any point only a single process can read from it. Just like file descriptors and sockets, mach ports are allocated and managed by the kernel and processes only see an integer, which they can use to indicate to the kernel which of their mach ports they want to use.
If you don't know how a XPC connection is established check:
What is interesting for you to know is that XPC’s abstraction is a one-to-one connection, but it is based on top of a technology which can have multiple senders, so:
Mach ports are single receiver, multiple sender.
An XPC connection’s audit token is the audit token of copied from the most recently received message.
Obtaining the audit token of an XPC connection is critical to many security checks.
Audit tokens are often used for an authorization check to decide whether to accept a connection. As this happens using a message to the service port, there is no connection established yet. More messages on this port will just be handled as additional connection requests. So any checks before accepting a connection are not vulnerable (this also means that within -listener:shouldAcceptNewConnection: the audit token is safe). We are therefore looking for XPC connections that verify specific actions.
XPC event handlers are handled synchronously. This means that the event handler for one message must be completed before calling it for the next one, even on concurrent dispatch queues. So inside an XPC event handler the audit token can not be overwritten by other normal (non-reply!) messages.
Two different methods this might be exploitable:
Variant1:
Exploit connects to service A and service B
Service B can call a privileged functionality in service A that the user cannot
Service A calls xpc_connection_get_audit_token while not inside the event handler for a connection in a dispatch_async.
So a different message could overwrite the Audit Token because it's being dispatched asynchronously outside of the event handler.
The exploit passes to service B the SEND right to service A.
So svc B will be actually sending the messages to service A.
The exploit tries to call the privileged action. In a RC svc A checks the authorization of this action while svc B overwrote the Audit token (giving the exploit access to call the privileged action).
Variant 2:
Service B can call a privileged functionality in service A that the user cannot
Exploit connects with service A which sends the exploit a message expecting a response in a specific replay port.
Exploit sends service B a message passing that reply port.
When service B replies, it sends the message to service A, while the exploit sends a different message to service A trying to reach a privileged functionality and expecting that the reply from service B will overwrite the Audit token in the perfect moment (Race Condition).
Scenario:
Two mach services A and B that we can both connect to (based on the sandbox profile and the authorization checks before accepting the connection).
A must have an authorization check for a specific action that B can pass (but our app can’t).
For example, if B has some entitlements or is running as root, it might allow him to ask A to perform a privileged action.
For this authorization check, A obtains the audit token asynchronously, for example by calling xpc_connection_get_audit_token from dispatch_async.
In this case an attacker could trigger a Race Condition making a exploit that asks A to perform an action several times while making B send messages to A. When the RC is successful, the audit token of B will be copied in memory while the request of our exploit is being handled by A, giving it access to the privilege action only B could request.
Therefore, the service B is diagnosticd because it runs as root and can be used to monitor a process, so once monitoring has started, it will send multiple messages per second.
To perform the attack:
Initiate a connection to the service named smd using the standard XPC protocol.

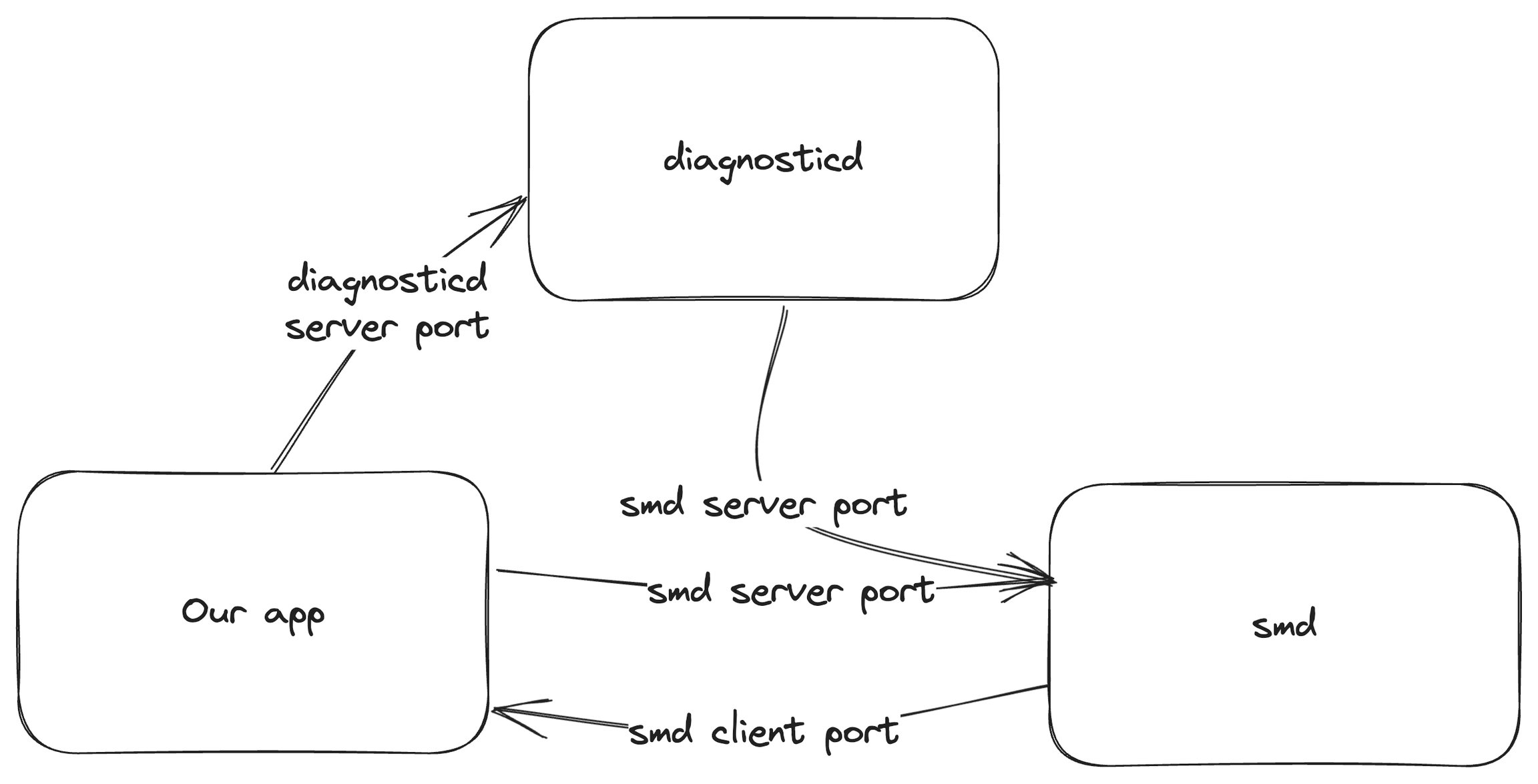

Form a secondary connection to diagnosticd. Contrary to normal procedure, rather than creating and sending two new mach ports, the client port send right is substituted with a duplicate of the send right associated with the smd connection.
As a result, XPC messages can be dispatched to diagnosticd, but responses from diagnosticd are rerouted to smd. To smd, it appears as though the messages from both the user and diagnosticd are originating from the same connection.
The next step involves instructing diagnosticd to initiate monitoring of a chosen process (potentially the user's own). Concurrently, a flood of routine 1004 messages is sent to smd. The intent here is to install a tool with elevated privileges.
This action triggers a race condition within the handle_bless function. The timing is critical: the xpc_connection_get_pid function call must return the PID of the user's process (as the privileged tool resides in the user's app bundle). However, the xpc_connection_get_audit_token function, specifically within the connection_is_authorized subroutine, must reference the audit token belonging to diagnosticd.
In an XPC (Cross-Process Communication) environment, although event handlers don't execute concurrently, the handling of reply messages has a unique behavior. Specifically, two distinct methods exist for sending messages that expect a reply:
xpc_connection_send_message_with_reply: Here, the XPC message is received and processed on a designated queue.
xpc_connection_send_message_with_reply_sync: Conversely, in this method, the XPC message is received and processed on the current dispatch queue.
This distinction is crucial because it allows for the possibility of reply packets being parsed concurrently with the execution of an XPC event handler. Notably, while _xpc_connection_set_creds does implement locking to safeguard against the partial overwrite of the audit token, it does not extend this protection to the entire connection object. Consequently, this creates a vulnerability where the audit token can be replaced during the interval between the parsing of a packet and the execution of its event handler.
To exploit this vulnerability, the following setup is required:
Two mach services, referred to as A and B, both of which can establish a connection.
Service A should include an authorization check for a specific action that only B can perform (the user's application cannot).
Service A should send a message that anticipates a reply.
The user can send a message to B that it will respond to.
The exploitation process involves the following steps:
Wait for service A to send a message that expects a reply.
Instead of replying directly to A, the reply port is hijacked and used to send a message to service B.
Subsequently, a message involving the forbidden action is dispatched, with the expectation that it will be processed concurrently with the reply from B.
Below is a visual representation of the described attack scenario:
 (1) (1) (1) (1) (1) (1).png)
Difficulties in Locating Instances: Searching for instances of xpc_connection_get_audit_token usage was challenging, both statically and dynamically.
Methodology: Frida was employed to hook the xpc_connection_get_audit_token function, filtering calls not originating from event handlers. However, this method was limited to the hooked process and required active usage.
Analysis Tooling: Tools like IDA/Ghidra were used for examining reachable mach services, but the process was time-consuming, complicated by calls involving the dyld shared cache.
Scripting Limitations: Attempts to script the analysis for calls to xpc_connection_get_audit_token from dispatch_async blocks were hindered by complexities in parsing blocks and interactions with the dyld shared cache.
Reported Issues: A report was submitted to Apple detailing the general and specific issues found within smd.
Apple's Response: Apple addressed the issue in smd by substituting xpc_connection_get_audit_token with xpc_dictionary_get_audit_token.
Nature of the Fix: The xpc_dictionary_get_audit_token function is considered secure as it retrieves the audit token directly from the mach message tied to the received XPC message. However, it's not part of the public API, similar to xpc_connection_get_audit_token.
Absence of a Broader Fix: It remains unclear why Apple didn't implement a more comprehensive fix, such as discarding messages not aligning with the saved audit token of the connection. The possibility of legitimate audit token changes in certain scenarios (e.g., setuid usage) might be a factor.
Current Status: The issue persists in iOS 17 and macOS 14, posing a challenge for those seeking to identify and understand it.
Although the previous situation sounds promising there are some scenarios where this is not going to cause problems ():
This happened with A as smd and B as diagnosticd. The function from smb an be used to install a new privileged helper toot (as root). If a process running as root contact smd, no other checks will be performed.
