The Microsoft Remote Procedure Call (MSRPC) protocol, a client-server model enabling a program to request a service from a program located on another computer without understanding the network's specifics, was initially derived from open-source software and later developed and copyrighted by Microsoft.

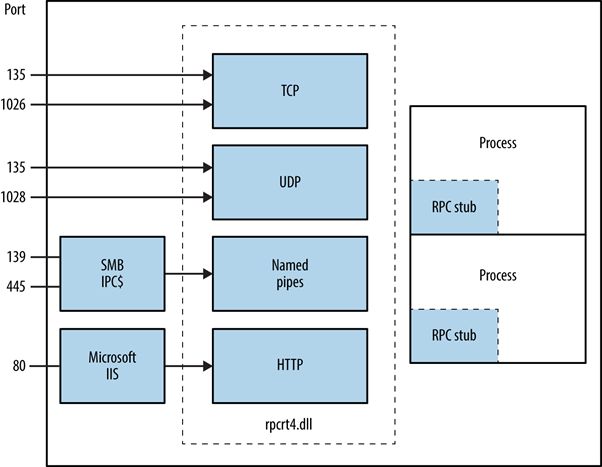

The RPC endpoint mapper can be accessed via TCP and UDP port 135, SMB on TCP 139 and 445 (with a null or authenticated session), and as a web service on TCP port 593.
Initiated by the client application, the MSRPC process involves calling a local stub procedure that then interacts with the client runtime library to prepare and transmit the request to the server. This includes converting parameters into a standard Network Data Representation format. The choice of transport protocol is determined by the runtime library if the server is remote, ensuring the RPC is delivered through the network stack.
Exposure of RPC services across TCP, UDP, HTTP, and SMB can be determined by querying the RPC locator service and individual endpoints. Tools such as rpcdump facilitate the identification of unique RPC services, denoted by IFID values, revealing service details and communication bindings:
Access to the RPC locator service is enabled through specific protocols: ncacn_ip_tcp and ncadg_ip_udp for accessing via port 135, ncacn_np for SMB connections, and ncacn_http for web-based RPC communication. The following commands exemplify the utilization of Metasploit modules to audit and interact with MSRPC services, primarily focusing on port 135:
All options except tcp_dcerpc_auditor are specifically designed for targeting MSRPC on port 135.
IFID: 12345778-1234-abcd-ef00-0123456789ab
Named Pipe: \pipe\lsarpc
Description: LSA interface, used to enumerate users.
IFID: 3919286a-b10c-11d0-9ba8-00c04fd92ef5
Named Pipe: \pipe\lsarpc
Description: LSA Directory Services (DS) interface, used to enumerate domains and trust relationships.
IFID: 12345778-1234-abcd-ef00-0123456789ac
Named Pipe: \pipe\samr
Description: LSA SAMR interface, used to access public SAM database elements (e.g., usernames) and brute-force user passwords regardless of account lockout policy.
IFID: 1ff70682-0a51-30e8-076d-740be8cee98b
Named Pipe: \pipe\atsvc
Description: Task scheduler, used to remotely execute commands.
IFID: 338cd001-2244-31f1-aaaa-900038001003
Named Pipe: \pipe\winreg
Description: Remote registry service, used to access and modify the system registry.
IFID: 367abb81-9844-35f1-ad32-98f038001003
Named Pipe: \pipe\svcctl
Description: Service control manager and server services, used to remotely start and stop services and execute commands.
IFID: 4b324fc8-1670-01d3-1278-5a47bf6ee188
Named Pipe: \pipe\srvsvc
Description: Service control manager and server services, used to remotely start and stop services and execute commands.
IFID: 4d9f4ab8-7d1c-11cf-861e-0020af6e7c57
Named Pipe: \pipe\epmapper
Description: DCOM interface, used for brute-force password grinding and information gathering via WM.
Remember to try with the different objects available
ShellWindows
ShellBrowserWindow
MMC20
Hacking Insights Engage with content that delves into the thrill and challenges of hacking
Real-Time Hack News Keep up-to-date with fast-paced hacking world through real-time news and insights
Latest Announcements Stay informed with the newest bug bounties launching and crucial platform updates
Join server to communicate with experienced hackers and bug bounty hunters!
Join us on and start collaborating with top hackers today!
Using , comes from is possible to abuse the ServerAlive2 method inside the IOXIDResolver interface.
This method has been used to get interface information as IPv6 address from the HTB box APT. See for 0xdf APT writeup, it includes an alternative method using rpcmap.py from with stringbinding (see above).
It is possible to execute remote code on a machine, if the credentials of a valid user are available using from impacket framework.
The rpcdump.exe from can interact with this port.
